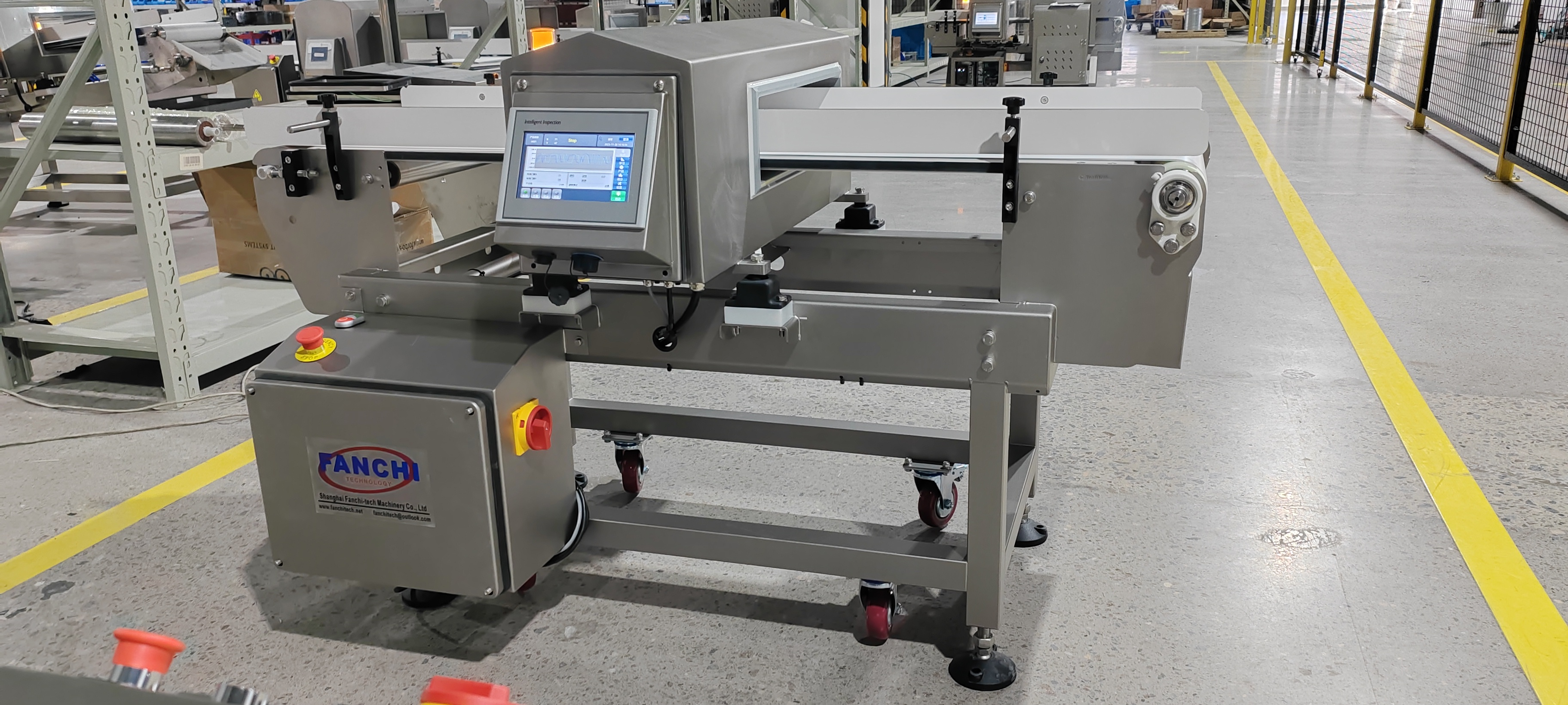

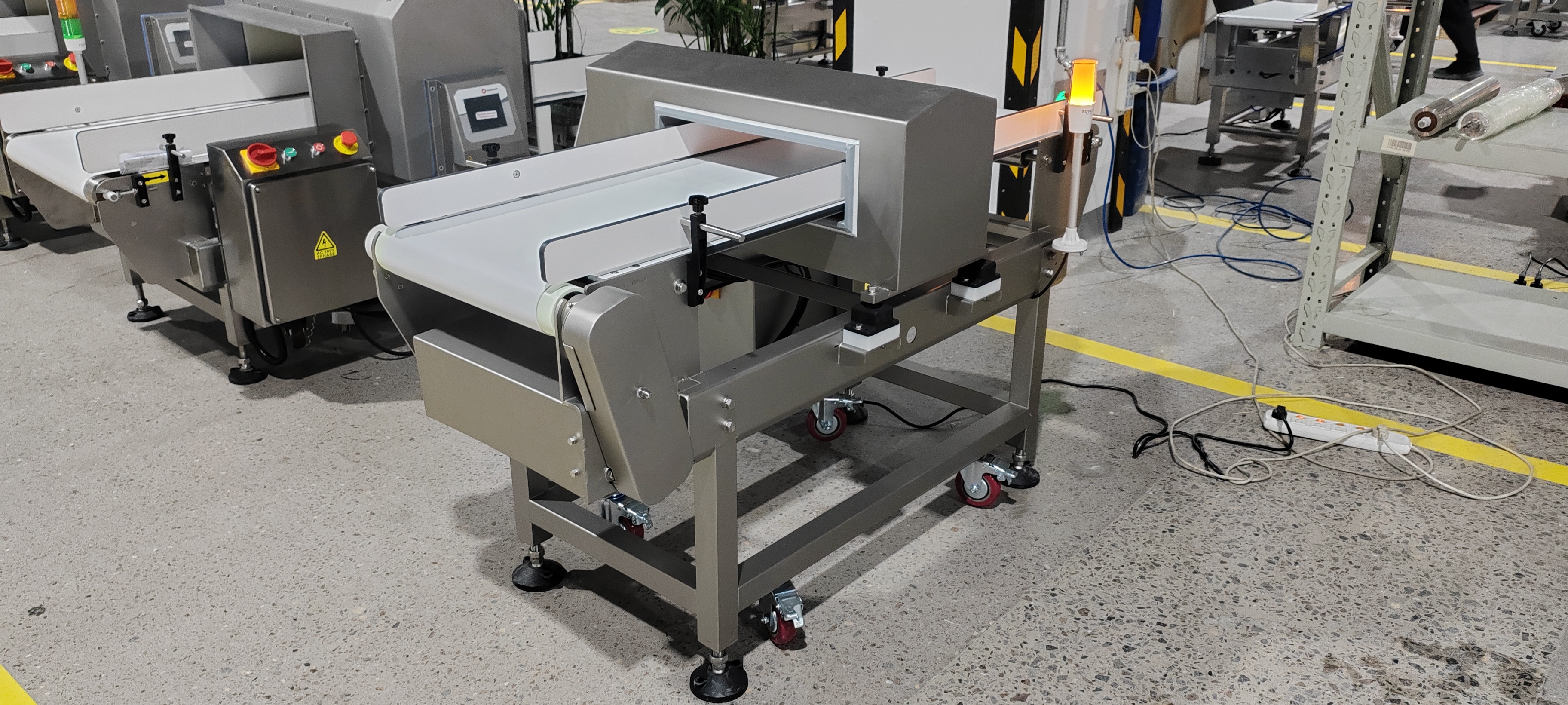

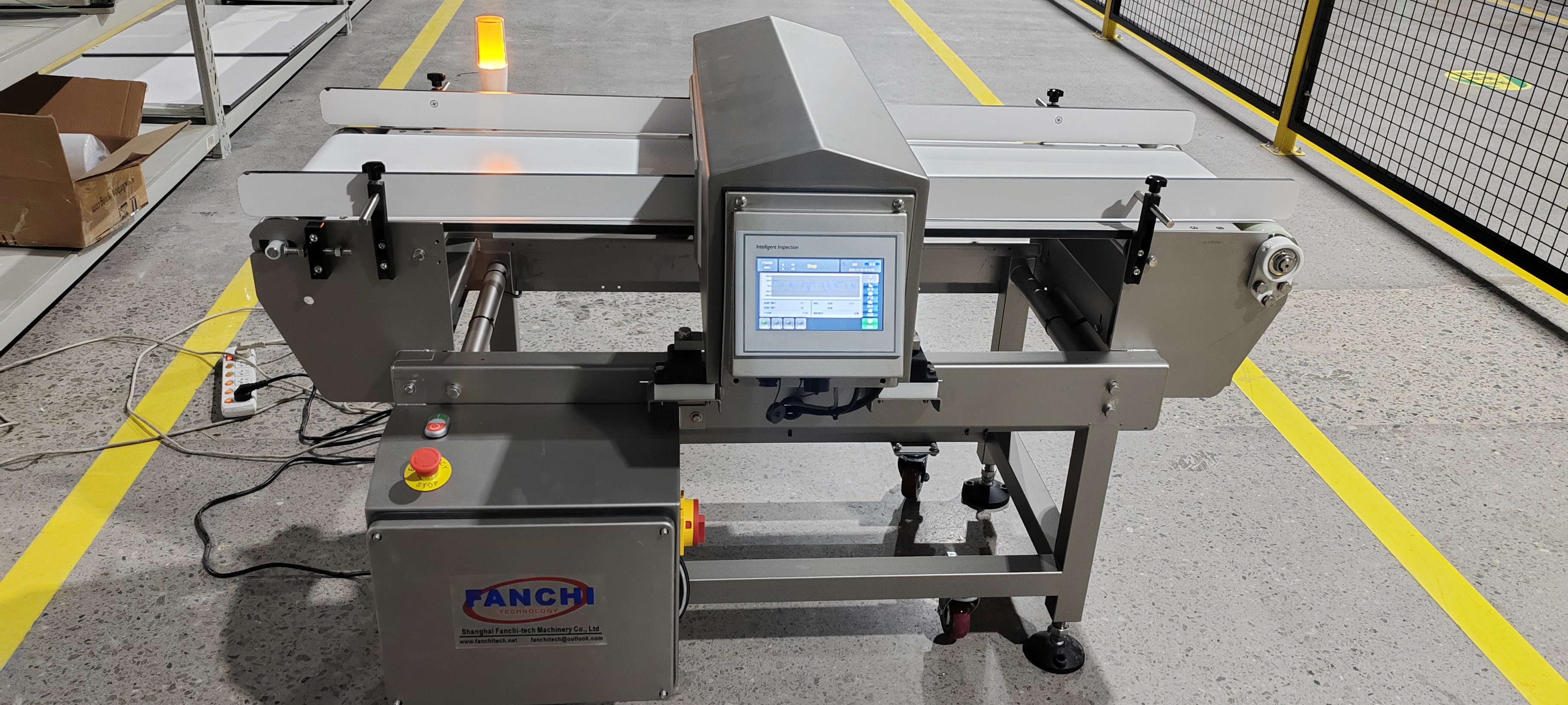

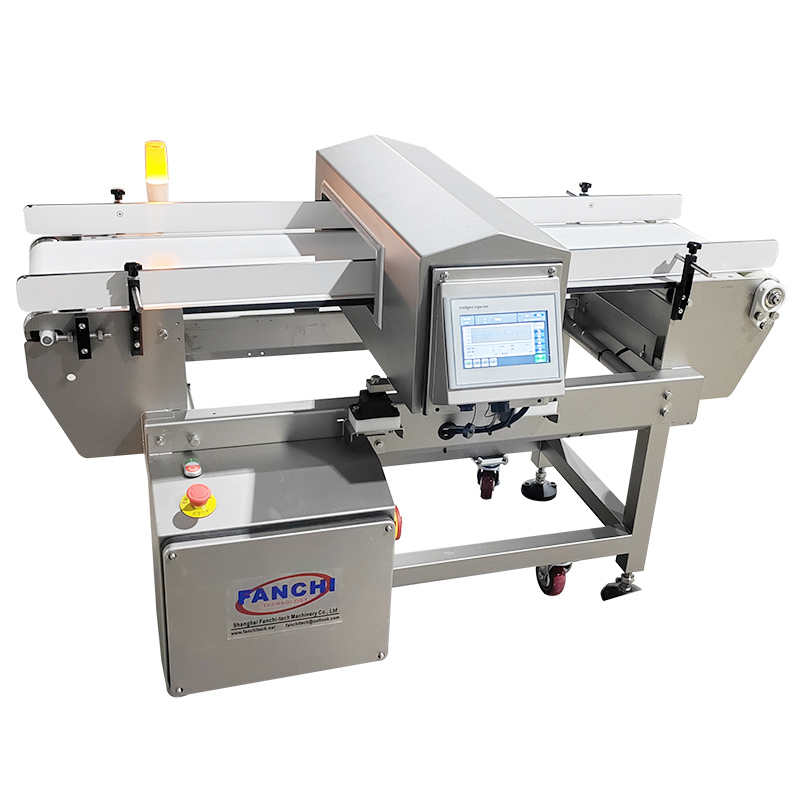

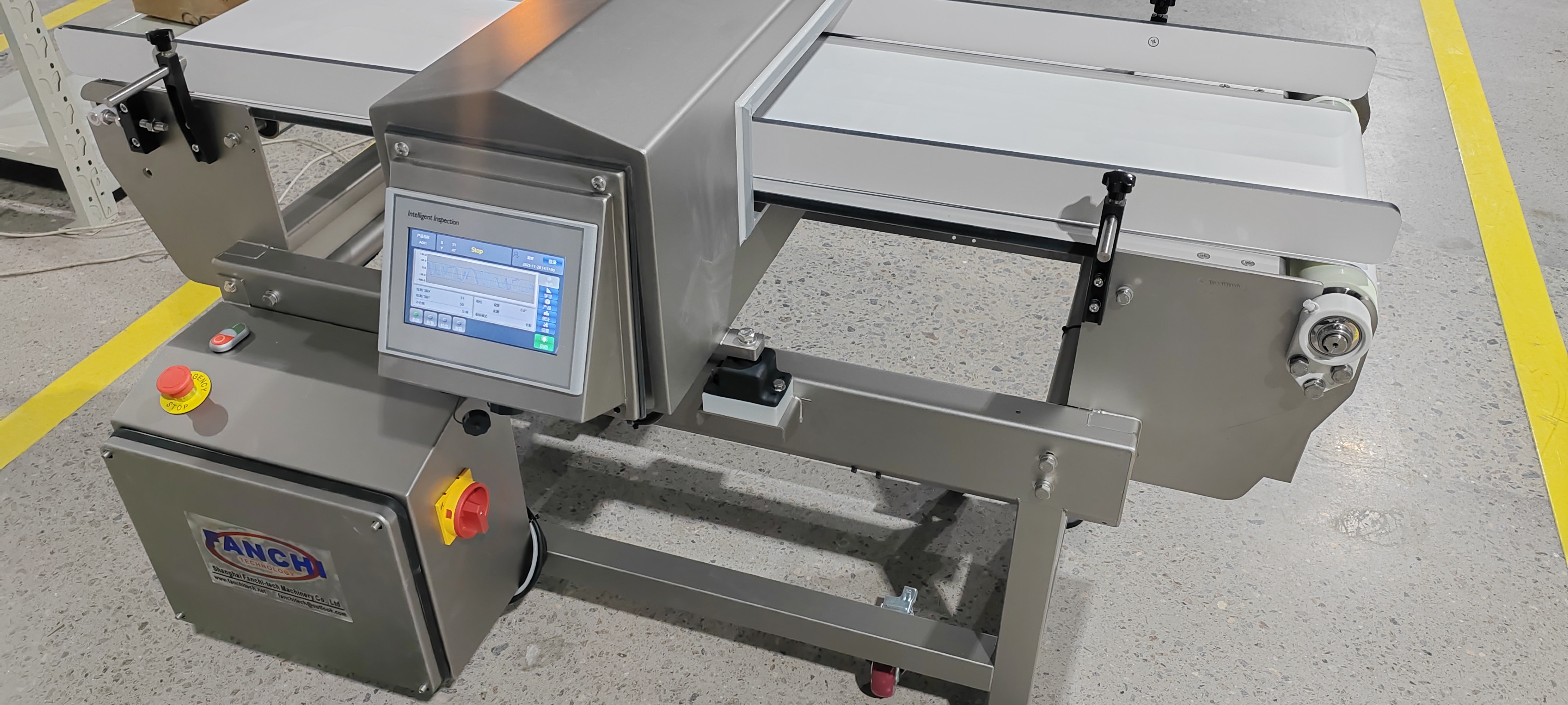

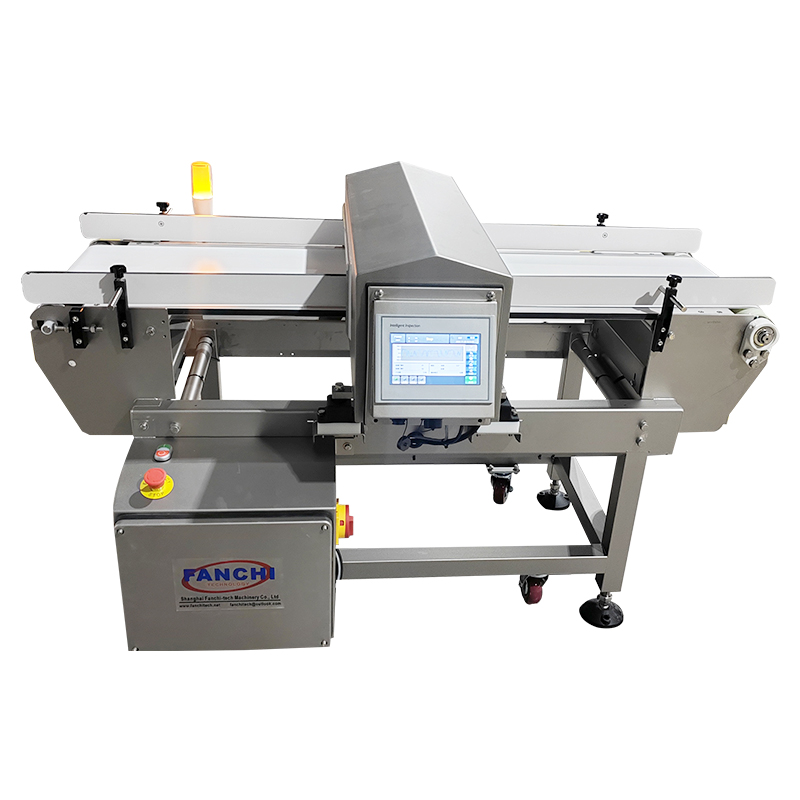

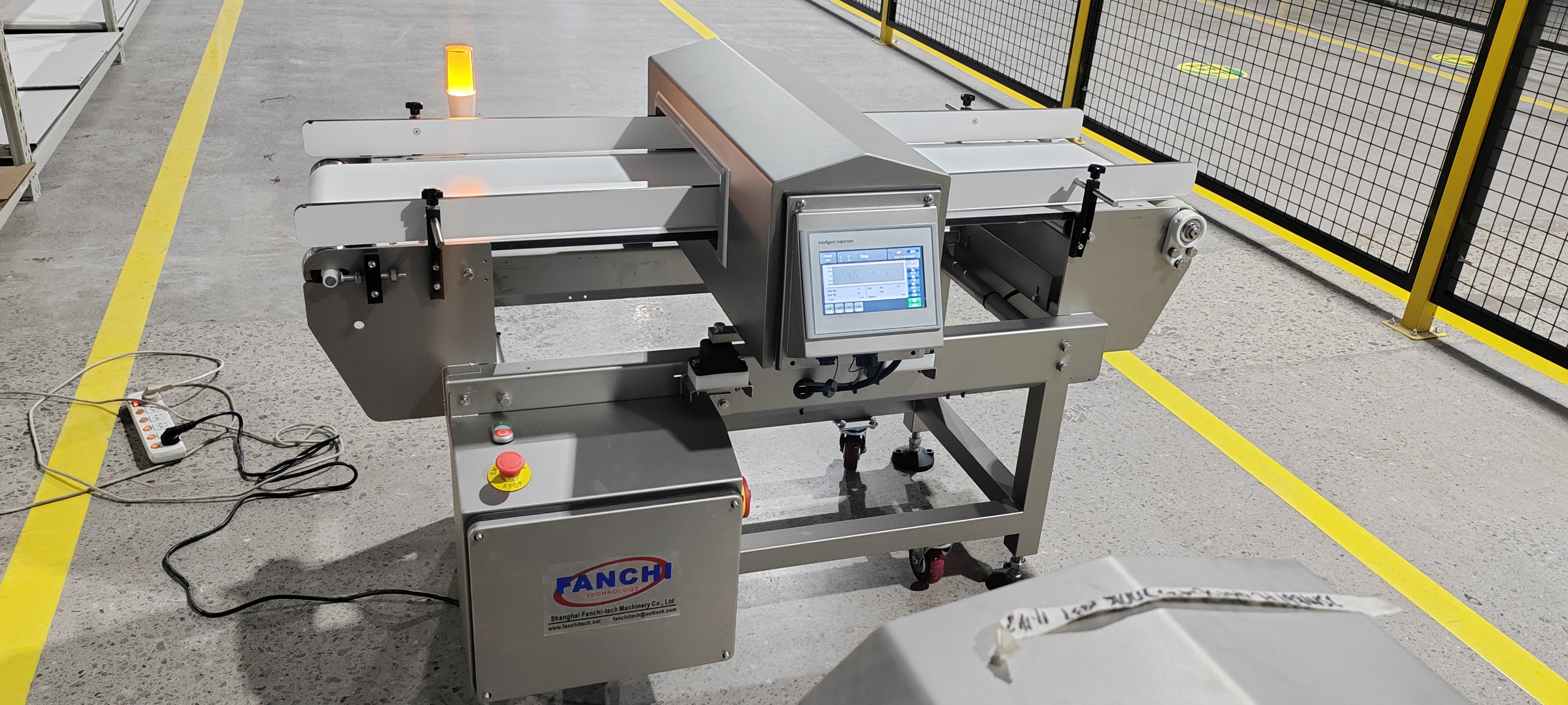

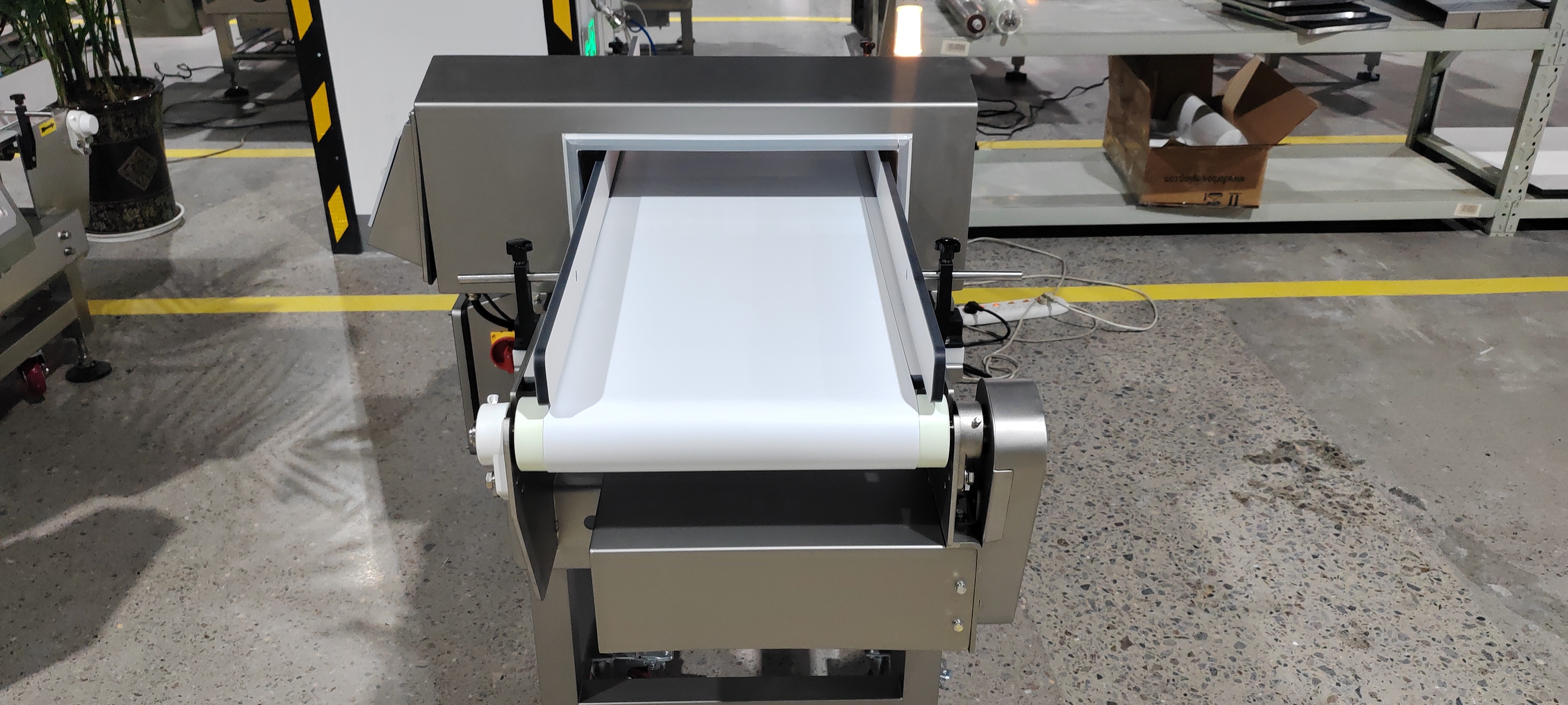

High-Sensitivity Automatic Metal Detection Machine with Touch Screen & Alarm System for Food Safety

Introduction&Application

Fanchi-tech Conveyor Metal Detector FA-MD-I Fanchi Conveyor Belt Metal Detector can be used in various industries: Meat, Poultry, Fish, Bakery, Convenience Food, Ready-to-Go Food, Confectionery, Snack Foods, Dried Foods, Cereals, Grains, Dairy and Egg Products, Fruit, Vegetables, Nuts and Others. The size, stability, and sensitivity of the sensors make this an ideal inspection solution for any application. All Fanchi metal detectors are custom-made and can be individually adapted to the requirements of the respective production environment.

Product Highlights

1. Full range of aperture sizes to suit products being inspected.
2. Auto parameter setting by intelligent product learning.
3. Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorithm.
4. Multilevel password protection provides secure access
5. Anti-interference photoelectric isolation drive allows remote installation of operation panel.
6. Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
7. Multiple product memories for rapid product change over and data storage.
8. Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
9. Optional rejection modes: pneumatic pusher, pneumatic flipper, pneumatic drop belt, belt retraction.
10. Optional full-cover or open type collecting bin.
11. Optional output safety cover with gate-open sensor that stops the machine.
12. SUS304 frame and major hardware parts by CNC tooling.

Key Components

German HBM fast load cell

Japanese Oriental motor

Danish Danfoss frequency converter

Japanese Omron optic sensors

French Schneider electric unit

US Gates synchronous belt

Food grade conveyor belt

Weinview industrial touch screen display with USB data output

Japanese SMC pneumatic unit

Technical Specification

No	Item	Data
1	Product Name	Fanchi-Tech FA-MD-II Conveyor Metal Detector For Food
2	Material of Construction	304 Brushed stainless steel
3	Power Supply	220-240 VAC, 50-60 Hz, 1 Ph, 400W 110 VAC, 60 Hz, 1 Ph, 400W
4	Temperature Range	-10 to 40° C (14 to 104° F)
5	Humidity	0 to 95% Relative Humidity (Non-condensing)
6	Belt Speed	5-45m/min(variable)
7	Conveyor Belt Material	Food level PU belt
8	Operation Panel	Key Pad(Touch Screen is optional)
9	Product Memory	100
10	Rejecting Mode	Sound and light alarm
11	Software Language	English(Spanish/French/Russian, etc optional)
12	Conformity	CE (Declaration of Conformityand Declaration of Manufacturer)
13	Automatic Reject Options	Belt-Stop / Stop On Detect, Pusher, Air-blast, Flipper, Flap, etc
