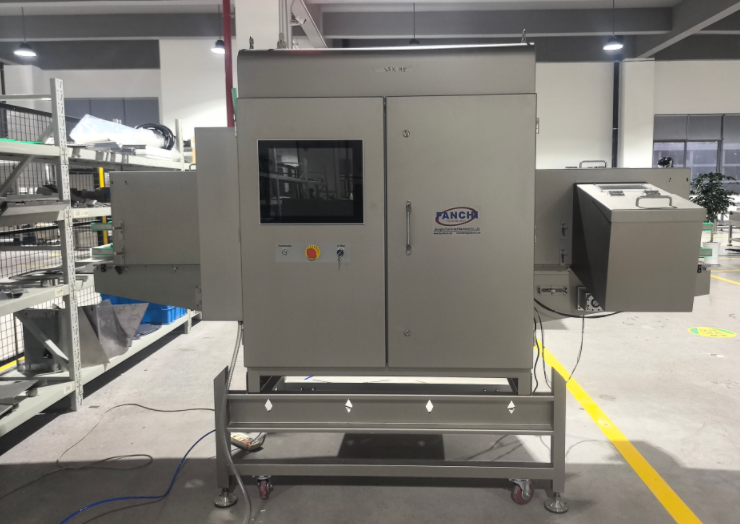

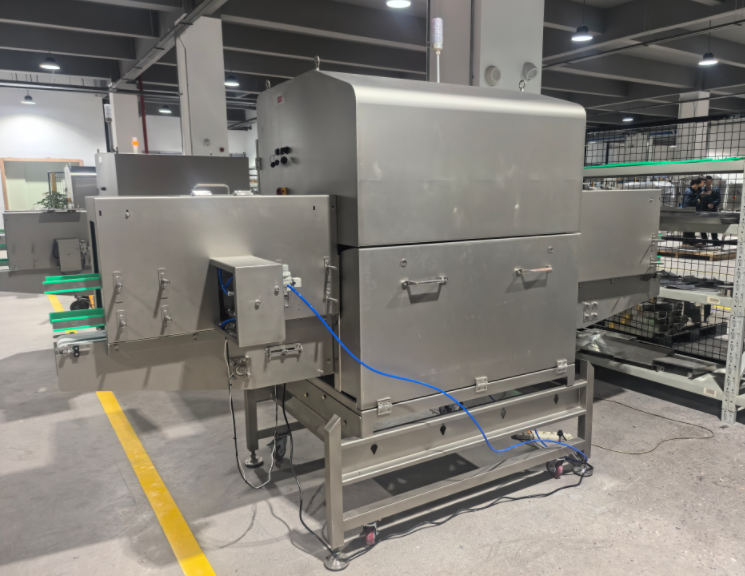

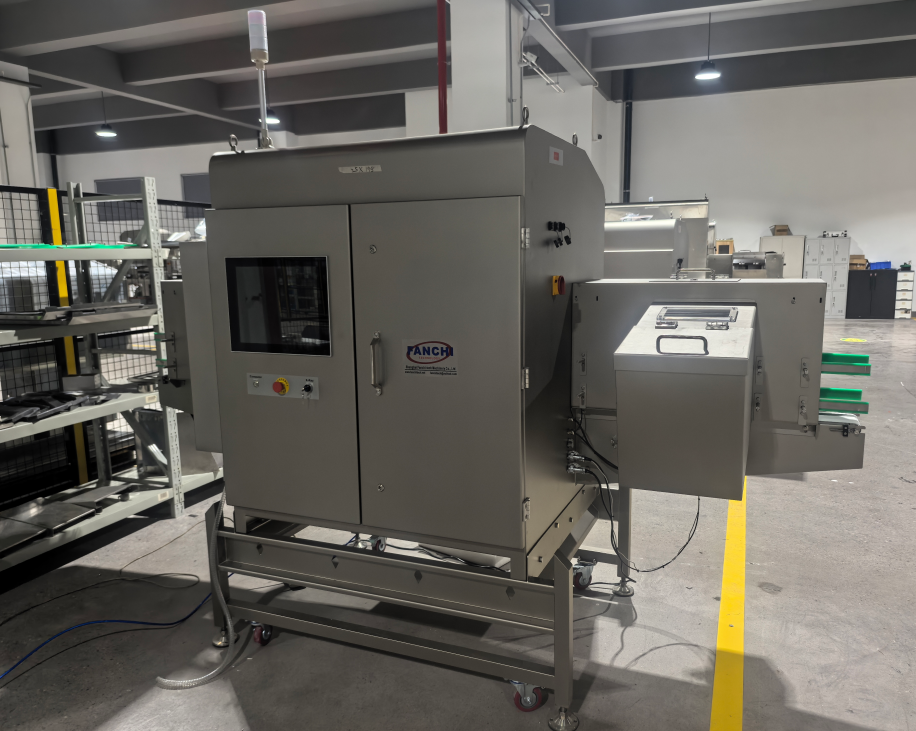

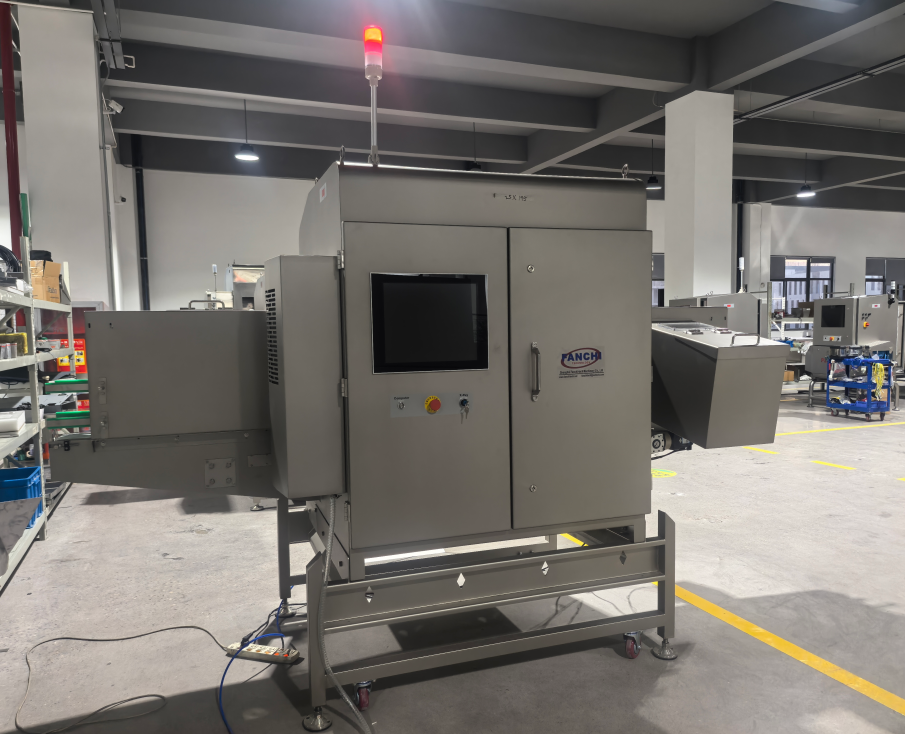

Fanchi Dual-beam x-ray system is specially designed for the complicated detection of glass particles in glass or plastic or metal containers. It also detects unwanted foreign objects such as metal, stones, ceramics or plastic with high density in the product. The FA-XIS1625D devices use a scanning hight up to 280 mm with a straight product tunnel for conveyor speed up to 120m/min.
| Model | FA-XIS1625S | FA-XIS1625D | |
| Tunnel Size WxH(mm) | 160x250 | 160x250 | |
| X-ray Tube Power(Max) |
Single Side Beam: 80Kv, 210/350/480W |
Dual-beam: 80Kv, 350/480W |
|
| Min Conveyor Length(mm) | 3300 | 4000 | |
| Sensitivity | S/S304: O.3mm; Wire(LxD): 0.3x2mm; Glass/Ceramic Ball: 1.5mm | ||
| Belt Speed(m/min) | 10-70 | ||
| Load Capacity(kg) | 25 | ||
| Belt Type | PU Anti Static | ||
| Line Height Options | 600,650,700,750,800,850,900mm +/- 50mm(can be customized) | ||
| Operation Screen | 17-inch LCD Touch Screen | ||
| Memory | 200 kinds | ||
| X-ray Generator/Sensor | VJT/DT | ||
| Rejector | Air blast rejector or Pusher, etc | ||
| Air Supply | 5 to 8 Bar (10mm Outside Dia) 72-116 PSI | ||
| Material of Construction | Stainless Steel 304 | ||
| Operation System | Windows 10 | ||
| Data Retrieval | Via USB, Ethernet, etc | ||
| Power Supply | AC220V, 1phase, 50/60Hz, 750W | ||
| Radiation Safety Standard | EN 61010-02-091, CFR 21 part 1020, 40 | ||
